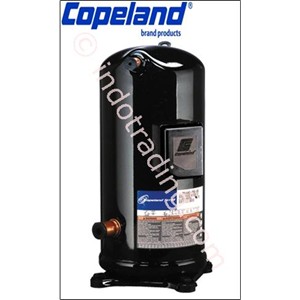

Compressor Copeland Tipe Zr190m3-Tfd-522 (15Hp)
Hover to Zoom

Update Terakhir
02 Okt 2019
Negara Asal
Thailand
Pembelian Min
1 unit

Spesifikasi

Spesifikasi

Performance
-Evap( ° F) / Cond( ° F) : 45/ 130 45/ 100
-Rg( ° F) / Liq( ° F) : 65/ 115 65/ 85
-Capacity ( Btu/ Hr) : 157000 183000
-Power ( Watts) : 13600 9550
-Current ( Amps) : 23.6 18.6
-Eer ( Btu/ Wh) : 11.5 19.1
-Mass Flow ( Lbs/ Hr) : 2300.0 2350.0
-Sound Power( Dba) : 80 Ave 85 Max
-Vibration ( Mils( Peak-Peak) ) : 2.5 Ave 3.5 Max
-Record Date : 2007-12-04

Mechanical
-Number Of Cylinders : 0
-Bore Size ( In) : 0.0
-Stroke ( In) : 0.0
-Stroke ( In) : 14.996
-Displ ( Ft^ 3/ Hr) : 1510.007

-Overall Length ( In) : 12.63
-Overall Width ( In) : 13.75
-Overall Height ( In) : 23.3
-Mounting Length ( In) : 8.65
-Mounting Width( In) : 8.65
-Mounting Height ( In) : 23.47*

-Suction Size ( In) : 2 1/ 4 Rotalock
-Discharge Size ( In) : 1 3/ 4 Rotalock
-Initial Oil Charge ( Oz) : 140
-Oil Recharge ( Oz) : 137
-Net Weight ( Lbs) : 262.0
-Internal Free Volume ( In^ 3) : 1120.0
-Horsepower : 15.0

* Overall Compressor Height On Copeland Brand Product' S Specified
Mounting Grommets.

Electrical
-Lra-High* : 198
-Lra-Half Winding :
-Lra-Low* : 179
-Rla( = Mcc/ 1.4; Use For Contactor Selection) : 26.4
-Rla ( = Mcc/ 1.56; Use For Breaker & Wire Size Selection) : 23.7
-Mcc ( Amps) : 37.0
-Rpm : 2900
-Max Operating Current : 30.0
-Ul File No. : Sa9747
-Ul File Date : 12-Jul-1994
-Csa File No. : Lr101508
-* Low And High Refer To The Low And High Nominal Voltage Ranges For Which The Motor Is Approved.

Alternate Applications
-Refrigerant : R-22 Hcfc
-Frequency( Hz) : 50/ 60
-Phase : 3
-Voltage : 380/ 440
-Application : Air Conditioning

Untuk keterangan lebih lanjut, silahkan download PDF ini :
