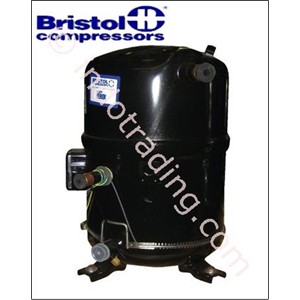

Compressor Bristol Tipe H2bg124dbee (10hp)

Rp. CALL
Update Terakhir
21 Sep 2021
Pembelian Min
1 unit

Spesifikasi Compressor Bristol Tipe H2bg124dbee (10hp)



Technical Specifications

Soun D Power Oil Charg E (Cc ) Weight

Initial Charges Re Charge Net (Kg) Ship (Kg)

2839 2366 66.22 70.31

Voltage Phase Hertz

380/415 3 50

Nominal Performance Data @ 50Hz

Ari

(380V)

Capacity (Watts) 28,400

Motor Input (Watts) 9,790

Amps 16.4

Cop 2.9

Efficiency (%)

Rating Condition (Oc)

Evaporating Temp 7.2

Condensing Temp 54.4

Ambient Temp 35

Liquid Temp 46.1

Return Gas Te Mp 18.3

Mechanical Data

Bore X Stroke (Cm) 5.558X3.018 Speed (Rpm) 2950

Displacement (Cc/Rev) 146.4 Iprv Setting Δp(Kgs/Cm2) 32 - 39

Displacement (M3/Hr) 25.9 Refrig. Chg. Lmt. (Kgs) 5

Electrical Data

Rla 16.5 U.L. File Sa5470 Motor Res. In Ohms (° C ) ± 5%

Lra (1St Winding) N/A Ce Approval Yes T1-T3 (C-R) T1-T2 (C-S) T2-T3 (S-R)

Lra (Full Winding) 80 Ccc Approval Yes 1.38 1.38 1.38

Mcc 25

Voltage Range 342 - 457

Protector Type Internal Line Break Crankcase Heate R

Mod Ule Volta Ge Optio Ns Watts 65 Bristol P/N 241615

24V Module, Bristol P/N N/A Recommended Values

120V Module, Bristol P/N N/A 1 5/8 Suction, Bristol P/N 250508

230V Module, Bristol P/N N/A 1 1/8 Discharge, Bristol P/N 250507


Lihat Selengkapnya

Untuk keterangan lebih lanjut, silahkan download PDF ini :
