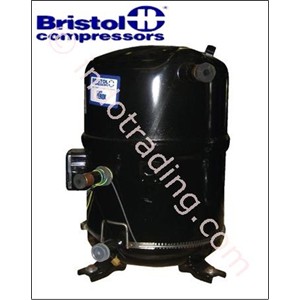

Compressor Bristol Tipe H23a623dbea
Hover to Zoom

Update Terakhir
19 Agt 2019
Negara Asal
United States
Pembelian Min
1 unit

Spesifikasi

Technical Specifications
Soun D Power Oil Charg E (Cc ) Weight
Initial Charges Re Charge Net (Kg) Ship (Kg)
1479 1390 37.65 39.69
Voltage Phase Hertz
380/415 3 50
Nominal Performance Data @ 50Hz
Ari Ari B-Point Chee R Heat Pump Asret
(380V) (415V) (380V) (380V) (380)V (380V)
Capacity (Watts) 15,200 0 17,800 19,500 12,500 15,600
Motor Input (Watts) 5,030 0 4,500 4,160 3,970 5,000
Amps 8.2 0.0 7.5 7.1 6.8 8.2
Cop 3.0 Nan 3.9 4.7 3.2 3.1
Efficiency (%)
Rating Condition (Oc)
Evaporating Temp 7.2 7.2 7.2 7.2 -1.1 7.2
Condensing Temp 54.4 54.4 43.3 37.8 43.3 54.4
Ambient Temp 35 35 35 35 35 35
Liquid Temp 46.1 46.1 35 29.4 35 46.1
Return Gas Te Mp 18.3 18.3 18.3 18.3 10 35
Mechanical Data
Bore X Stroke (Cm) 5.080X2.550 Speed (Rpm) 2950
Displacement (Cc/Rev) 103.4 Iprv Setting Δp(Kgs/Cm2) 28 - 35
Displacement (M3/Hr) 18.3 Refrig. Chg. Lmt. (Kgs) 2
Electrical Data
Rla 8.2 U.L. File Sa5470 Motor Res. In Ohms (° C ) ± 5%
Lra 62 Ce Approval Yes T1-T3 (C-R) T1-T2 (C-S) T2-T3 (S-R)
Mcc 16 Ccc Approval Yes 2.79 2.79 5.58
Voltage Range 342 - 457 2.77 2.77 2.77
Protector Type Internal Line Break
Startrelay: N/A Ptcr Device: N/A
Startcap(Ufd/Volts): N/A Ac Ohms : N/A
Runcap(Ufd/Volts): N/A (Parenthesis Denote Med.Torque Components)
Vendor P/N: Ti 8Ht 5 Type-Watts: Pctr - 30
